The HB400 Optical Comparator provides exceptional performance with a 16" (400mm) diameter viewing screen, LED lighting, and 110lbs (50kg) workstage load capacity. Available with optical detection which removes operator subjectivity in locating edges of parts being measured. A bayonet style lens mounting system accepts a choice of five fixed interchangeable lenses. Motorized stage and swing-away lamp house are optional features. This comparator provides performance previously only available with floor standing models.

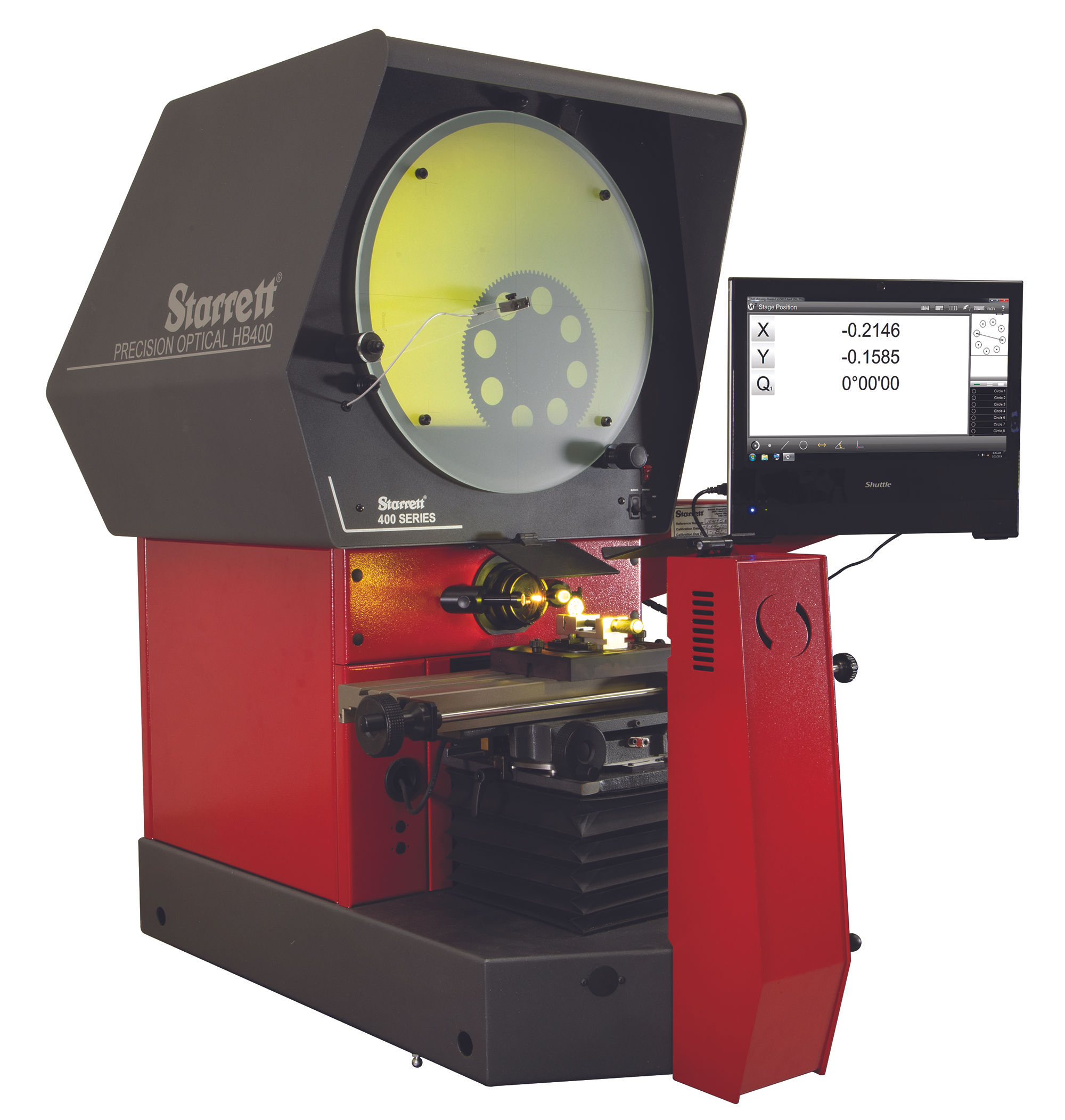

HB400 Horizontal Benchtop Optical Comparator
16" x 6" X-Y travel workstage (400mm x 150mm)
All metal construction with hard-anodized stage tooling plate
Single bayonet-style lens mounting system
Collimating condenser with yellow/green filter and provision to mount further accessories
Linear encoder (glass scale) with 20μin (0.5μm) resolution on both X and Y axes
LED profile and surface illumination
Fixed duplex fiber optic surface illumination
Digital protractor for accurate angle measurement (1' resolution) via Q-axis readout
Available with MetLogix™ M2, M2E, or Mx-Series digital readout.
Fine adjustment on all axes
Quick release mechanism on the X-axis
