The HD400 is a dual lens optical comparator offering a two-lens mount allowing instant switching between two magnifications lenses. The HD400 is equipped with a 16" (400mm) travel workstage as standard. Optional automatic optical edge detection removes operator subjectivity in locating edges of parts being measured. A bayonet style lens mounting system accepts a choice of five interchangeable lenses. Motorized stage and swing-away lamp house are optional features.

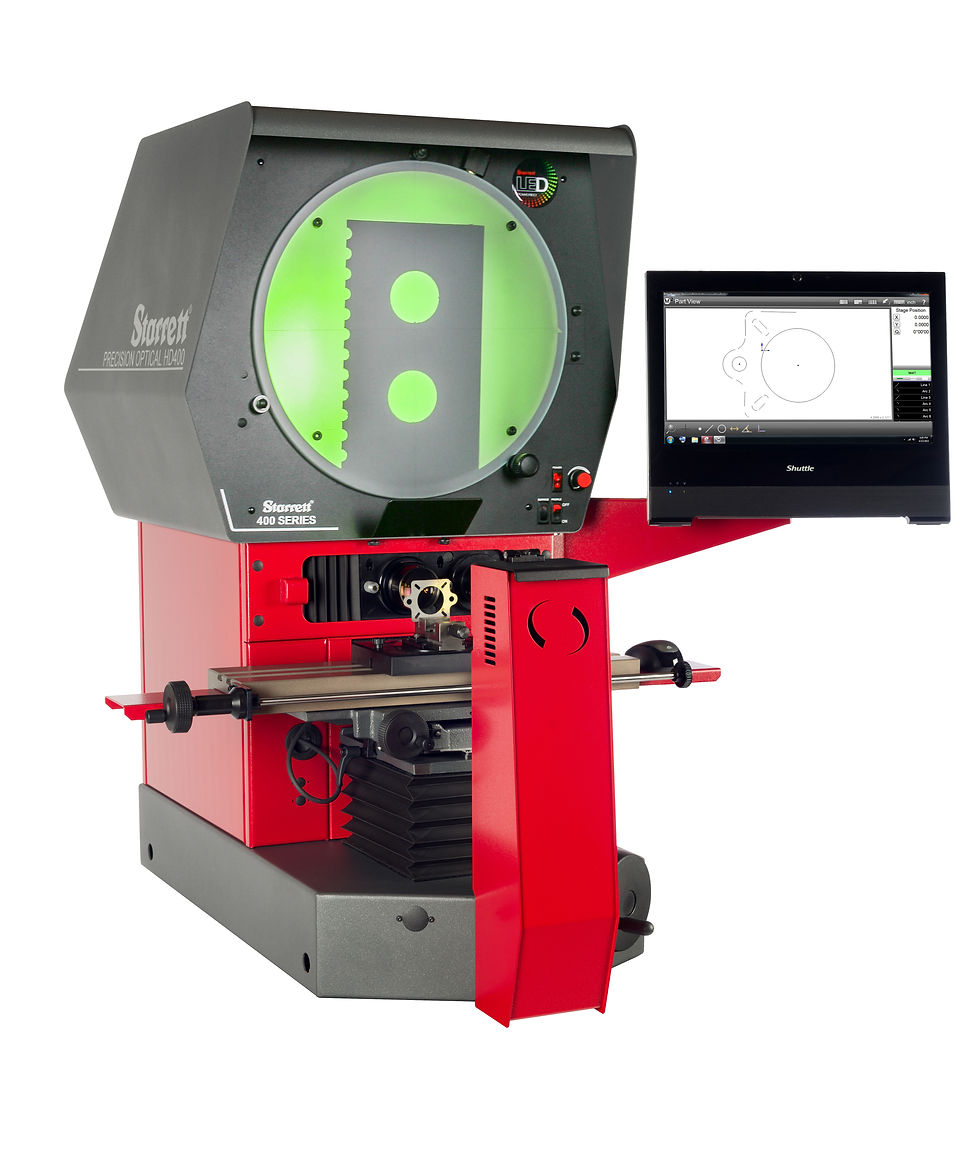

HD400 Horizontal Benchtop Optical Comparator
16" x 6" (400mm x 150mm) X-Y travel workstage
All metal construction with hard-anodized stage tooling plate
16" (400mm) diameter screen
Dual-lens mounting system
Collimating condenser with yellow/green filter and provision to mount further accessories
Linear encoder (glass scale) with 20μin (0.5μm) resolution on both X and Y axes
LED profile and surface illumination
Fully retractable flexible duplex fiber optic surface illumination
Digital protractor for accurate angle measurements (1' resolution) via Q-axis readout
Helix adjustment for accurate thread form inspection
Available with MetLogix™ M2, M2E, or Mx-Series digital readout system
Fine adjustment on all axes
Quick release mechanism on the X-axis
